2627420-000-440

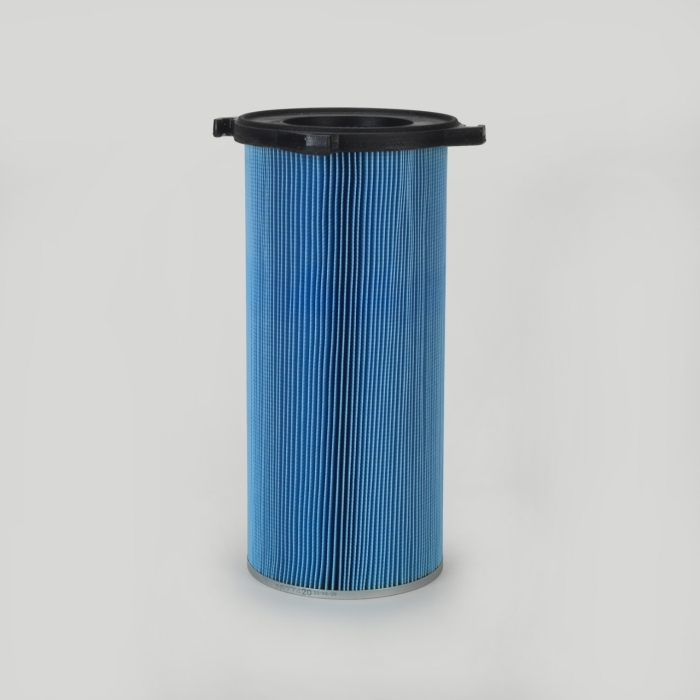

CARTRIDGE QUICK FIX 4 HOOK ULTRA-WEB FR OD 218 MM X L 505 MM NO OUTER LINER DAP & CAP

Your price: €78.68

Files

Filter Data Sheet

Details

Cartridge Filter with open top end cap with 4 hooks, 265 mm pitch diameter and closed bottom end cap in Ultra-Web Flame Retardant, 218 mm outer diameter x 505 mm long including top gasket; Special features: Without outer liner, Dirty Air Plenum and Clean Air Plenum installation for Series 218 and other brands of cartridge collectors

Attributes

Diameter (mm) 218
Inner Diameter (mm) 140
Length (mm) 505
Media Ultra-Web Flame Retardant
Media Weight (g/m²) 115
Area (m²) 5
Unit Family Quick Fix 4
Pitch Diameter (mm) 267 (actual 265)
Top End Cap Design Open with 4 Hooks
Bottom End Cap Design Closed
Earthed No
Flame Retardant Yes
Outer Liner No
End Cap/Liner Material Polyurethane
Gasket Position Above and Below Top End Cap
Pleath Height (mm) 34
Number of Pleats 150
Max. Temp (°C) 70
Volume (m³) 0.06977
Weight (kg) 3.1
Type Quick Fix 4
