2627202-000-440

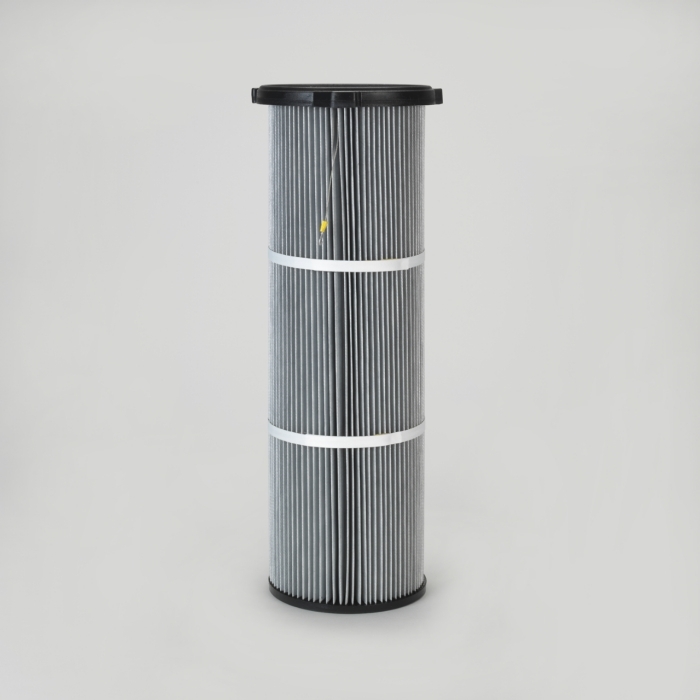

Cartridge Filter with open end cap with 3 hooks and pitch diameter 267 mm in Ultra-Web Spunbond Anti-Static , 218 mm outer diameter x 710 mm long including top gasket; Special features: Earthed and Dirty Air Plenum and Clean Air Plenum installation for Tema Process and other brands of cartridge collectors

Diameter (mm)	218
Inner Diameter (mm)	143
Length (mm)	710
Media	Ultra-Web Spunbond Antistatic
Media Weight (g/m²)	260
Area (m²)	3.4
Unit Family	Quick Fix 3
Pitch Diameter (mm)	267 (actual 265)
Top End Cap Design	Open with 3 Hooks
Bottom End Cap Design	Closed
Earthed	Yes
Flame Retardant	No
Outer Liner	No
End Cap/Liner Material	Polyurethane
Gasket Position	Above and Below Top End Cap
Pleath Height (mm)	32
Number of Pleats	75
Max. Temp (°C)	60
Volume (m³)	0.06977
Weight (kg)	3.01
Type	Quick Fix 3
