2627189-000-440

CARTRIDGE QUICK FIX 3 HOOK ULTRA-WEB FR OD 325 MM X L 618 MM DAP

Your price: €105.20

Files

Media Data Sheet

Details

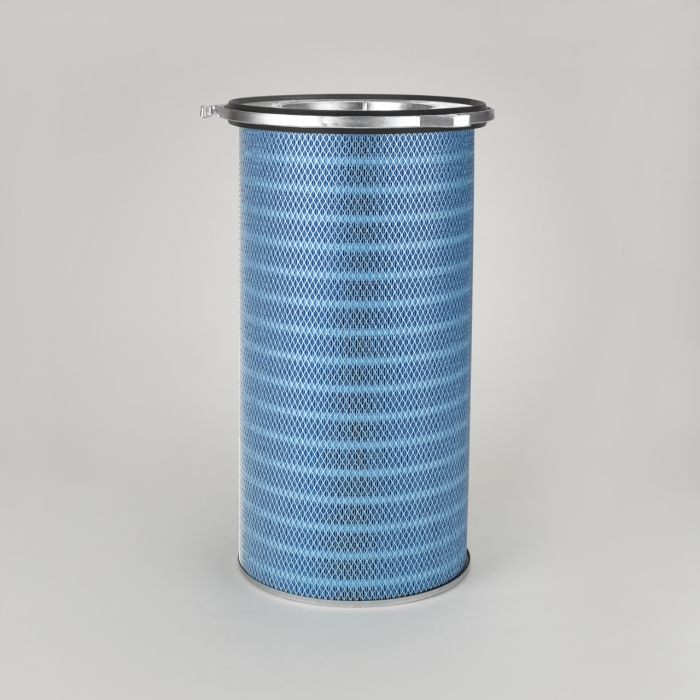

Cartridge Filter with open end cap with 3 hooks and pitch diameter 397 mm in Ultra-Web Flame Retardant, 325 mm outer diameter x 618 mm long including top gasket; Special features: Bottom end cap closed with 13 mm hole and Dirty Air Plenum installation for Air Liquide and other brands of cartridge collectors

Attributes

Diameter (mm) 325
Inner Diameter (mm) 213
Length (mm) 618
Media Ultra-Web Flame Retardant
Media Weight (g/m²) 115
Area (m²) 14.5
Unit Family Quick Fix 3
Pitch Diameter (mm) 397 (actual 393)
Top End Cap Design Open with 3 Hooks
Bottom End Cap Design Closed with hole 13 mm
Earthed No
Flame Retardant Yes
Outer Liner Yes
End Cap/Liner Material Top end cap Polyurethane and Bottom end cap Galvanized Steel
Gasket Position Above Top End Cap
Pleath Height (mm) 48
Number of Pleats 252
Max. Temp (°C) 60
Volume (m³) 0.13448
Weight (kg) 7.42
Type Quick Fix 3
