2625792

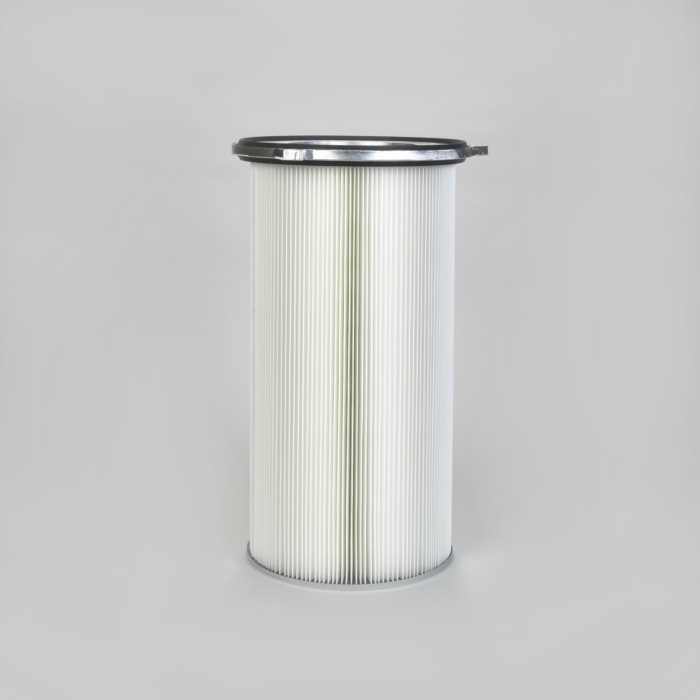

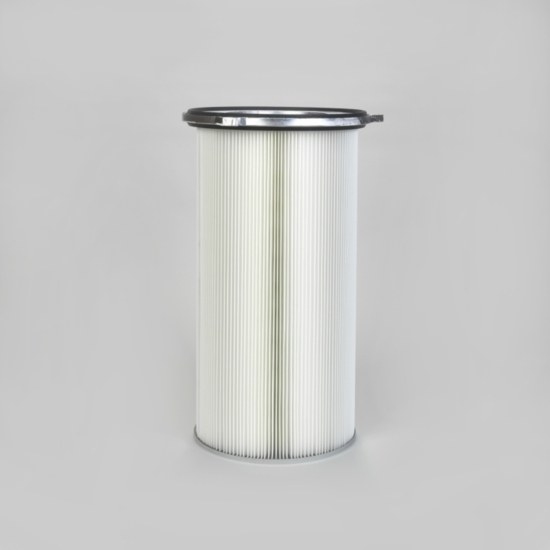

Cartridge Filter with open top end cap with 3 hooks, 397 mm pitch diameter and closed bottom end cap in Torit-Tex (Polyester Spunbond) TT9032, 325 mm outer diameter x 1200 mm long; Special features: Earthed and Dirty Air Plenum and Clean Air Plenum installation for Series 325 and other brands of cartridge collectors

Diameter (mm)	325
Inner Diameter (mm)	213
Length (mm)	1200
Media	Torit-Tex
Media Weight (g/m²)	260
Area (m²)	21
Unit Family	Quick Fix 3
Pitch Diameter (mm)	397
Top End Cap Design	Open with 3 Hooks
Pleath Height (mm)	49
Number of Pleats	179
Max. Temp (°C)	93
Volume (m³)	0.227427
Weight (kg)	12.5
