R080397-000-440

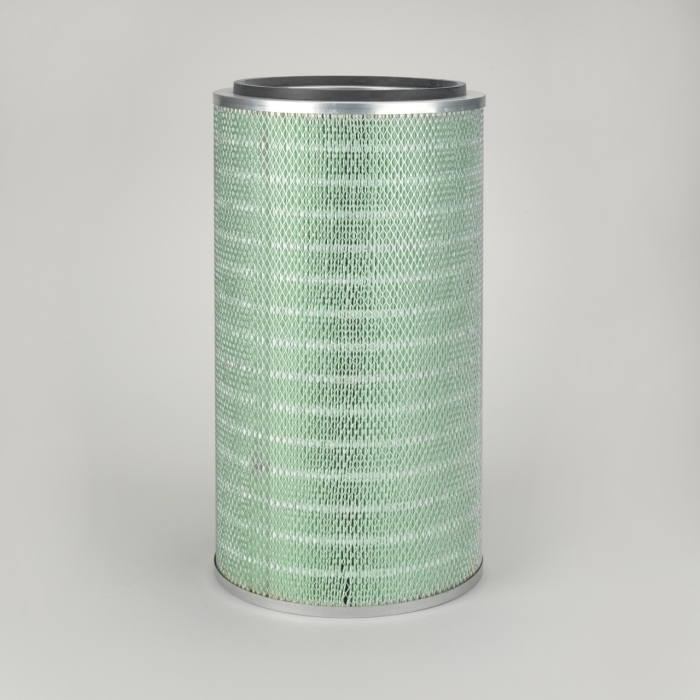

TD-style Cartridge Filter in Standard Cellulose Flame Retardant with Nanofibers, 324 mm outer diameter x 660 mm long with open/closed (13.5mm bolt hole) end caps for ECB, TD and other brands of cartridge collectors

Diameter (mm)	324
Inner Diameter (mm)	213
Length (mm)	660
Media	Standard Cellulose Flame Retardant with Nanofibres
Media Weight (g/m²)	114
Area (m²)	18
Unit Family	TD / ECB / DFP / PT1001
Top End Cap Design	Open
Bottom End Cap Design	Closed with hole 13.5 mm
Earthed	No
Flame Retardant	Yes
Outer Liner	Yes
End Cap/Liner Material	Galvanized Steel
Gasket Position	Above Top End Cap
Pleath Height (mm)	50
Number of Pleats	273
Max. Temp (°C)	65
